Carte Wifi PCI express TL-WDN4800 reconu en native
par ScreenZ Dim 27 Mar - 3:07
Salut a tous & Joyeuse Pâques
!!
J ai un soucis qui et depuis toujour mais que je n ai pas pris le temp de regler .. ( manque de temp )
Par moment j ai une perte de connexion .. c a dire ??
Je suis sur le net et plus de net.. alors que mon reseau wifi et encore la .. donc je desactive le wifi et reactive et la tout redevient OK une idée ?
sachant que la carte et reconnu en native .. je suis sous el capitan
J attend vos retour, merci
ps : attention au chocolat
!!J ai un soucis qui et depuis toujour mais que je n ai pas pris le temp de regler .. ( manque de temp )
Par moment j ai une perte de connexion .. c a dire ??
Je suis sur le net et plus de net.. alors que mon reseau wifi et encore la .. donc je desactive le wifi et reactive et la tout redevient OK une idée ?
sachant que la carte et reconnu en native .. je suis sous el capitan
J attend vos retour, merci
ps : attention au chocolat
ScreenZ- Super usr
- Date d'inscription : 06/01/2013
Localisation : Metz
Re: Carte Wifi PCI express TL-WDN4800 reconu en native
par chris1111 Dim 27 Mar - 6:54
J'ai eu la meme chose et jai constater un ralentissement de connections depuis El Capitan
10.11.2 et meme la dernière Maj de Yosemite
jai appliquer ce patch qui semble avoir un effet
10.11.2 et meme la dernière Maj de Yosemite
jai appliquer ce patch qui semble avoir un effet
- Code:
<dict>
<key>Comment</key>
<string>Atheros Locale Fix</string>
<key>Find</key>
<data>
g/s3
</data>
<key>Name</key>
<string>AirPortAtheros40</string>
<key>Replace</key>
<data>
g/sh
</data>
</dict>
chris1111- Admin
- Date d'inscription : 18/12/2012
Localisation : Laval. Québec Canada -
Re: Carte Wifi PCI express TL-WDN4800 reconu en native
par ScreenZ Dim 27 Mar - 9:19

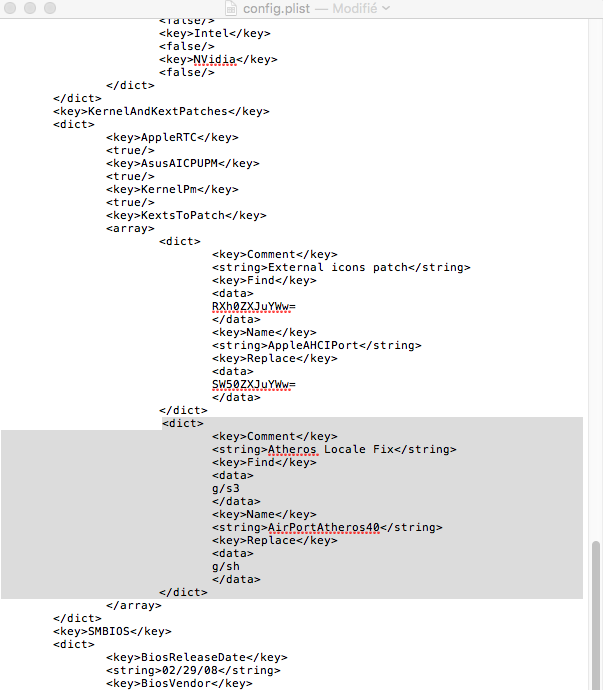

Ok, merci je vient de l ajouter on va voir
ScreenZ- Super usr
- Date d'inscription : 06/01/2013
Localisation : Metz
Re: Carte Wifi PCI express TL-WDN4800 reconu en native
par chris1111 Dim 27 Mar - 9:38
Terminal
sudo /usr/local/bin/bdmesg -p > ~/Documents/bdmesg.txt
sudo /usr/local/bin/bdmesg -p > ~/Documents/bdmesg.txt
chris1111- Admin
- Date d'inscription : 18/12/2012
Localisation : Laval. Québec Canada -
Re: Carte Wifi PCI express TL-WDN4800 reconu en native
par ScreenZ Dim 27 Mar - 10:12
- Code:
0:100 0:100 MemLog inited, TSC freq: 2993207459
0:100 0:000
0:100 0:000 Now is 27.3.2016, 14:7:59 (GMT+2047)
0:100 0:000 Starting Clover rev 3330 on American Megatrends EFI
0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,57B94C6A-55FE-4414-8A1B-897C7DF325A6,0x28,0x64000) @D3DEC118
0:100 0:000 SelfDirPath = \EFI\BOOT
0:100 0:000 Total Memory Slots Count = 4
0:100 0:000 Type 17 Index = 0
0:100 0:000 SmbiosTable.Type17->Speed = 1333MHz
0:100 0:000 SmbiosTable.Type17->Size = 2048MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100 0:000 Type 17 Index = 1
0:100 0:000 Ignoring insane frequency value 0MHz
0:100 0:000 SmbiosTable.Type17->Speed = 0MHz
0:100 0:000 SmbiosTable.Type17->Size = 0MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100 0:000 Type 17 Index = 2
0:100 0:000 SmbiosTable.Type17->Speed = 1333MHz
0:100 0:000 SmbiosTable.Type17->Size = 2048MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100 0:000 Type 17 Index = 3
0:100 0:000 Ignoring insane frequency value 0MHz
0:100 0:000 SmbiosTable.Type17->Speed = 0MHz
0:100 0:000 SmbiosTable.Type17->Size = 0MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100 0:000 Boot status=0
0:100 0:000 Clover revision: 3330 running on MS-7788
0:100 0:000 ... with board H61M-P20 (G3) (MS-7788)
0:100 0:000 CPU Vendor = 756E6547 Model=206A7
0:100 0:000 The CPU not supported turbo
0:100 0:000 BrandString = Intel(R) Pentium(R) CPU G860 @ 3.00GHz
0:100 0:000 MSR 0xE2 before patch 1E008401
0:100 0:000 MSR 0xE2 is locked, PM patches will be turned on
0:100 0:000 MSR 0xE4 00010414
0:100 0:000 MSR 0xCE 00001000_60011E00
0:100 0:000 non-usable FLEX_RATIO = 10000
0:100 0:000 corrected FLEX_RATIO = 0
0:100 0:000 MSR 0x1B0 00000000
0:100 0:000 FSBFrequency=100MHz DMIvalue=100000kHz
0:100 0:000 Corrected FSBFrequency=100MHz
0:100 0:000 Vendor/Model/Stepping: 0x756E6547/0x2A/0x7
0:100 0:000 Family/ExtFamily: 0x6/0x0
0:100 0:000 MaxDiv/MinDiv: 30.0/16
0:100 0:000 Turbo: 30/30/30/30
0:100 0:000 Features: 0xBFEBFBFF
0:100 0:000 Threads: 2
0:100 0:000 Cores: 2
0:100 0:000 FSB: 100 MHz
0:100 0:000 CPU: 3000 MHz
0:100 0:000 TSC: 3000 MHz
0:100 0:000 PIS: 400 MHz
0:100 0:000 PCI (00|00:00.00) : 8086 0100 class=060000
0:100 0:000 PCI (00|00:01.00) : 8086 0101 class=060400
0:100 0:000 PCI (00|01:00.00) : 10DE 104A class=030000
0:100 0:000 Found NVidia model=Gigabyte GeForce GT 610
0:100 0:000 PCI (00|01:00.01) : 10DE 0E08 class=040300
0:100 0:000 PCI (00|00:16.00) : 8086 1C3A class=078000
0:100 0:000 PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100 0:000 PCI (00|00:1A.00) : 8086 1C2D class=0C0320
0:100 0:000 PCI (00|00:1B.00) : 8086 1C20 class=040300
0:100 0:000 PCI (00|00:1C.00) : 8086 1C10 class=060400
0:100 0:000 PCI (00|02:00.00) : 168C 0030 class=028000
0:100 0:000 PCI (00|00:1C.04) : 8086 1C18 class=060400
0:100 0:000 PCI (00|03:00.00) : 10EC 8136 class=020000
0:100 0:000 LAN 0, Vendor=10EC, MMIO=D000
0:100 0:000 PCI (00|00:1D.00) : 8086 1C26 class=0C0320
0:100 0:000 PCI (00|00:1F.00) : 8086 1C5C class=060100
0:100 0:000 PCI (00|00:1F.02) : 8086 1C02 class=010601
0:100 0:000 PCI (00|00:1F.03) : 8086 1C22 class=0C0500
0:100 0:000 Clover load options size = 0 bytes
0:147 0:047 Using OEM config.plist at path: EFI\CLOVER\config.plist
0:148 0:000 EFI\CLOVER\config.plist loaded: Success
0:162 0:014 Found theme directory: Space
0:169 0:007 Found theme directory: Metro
0:179 0:010 Found theme directory: EMBEDDED
0:184 0:004 Found theme directory: NEWYEAR
0:187 0:002 Found theme directory: RANDOM
0:188 0:001 Loading early settings
0:188 0:000 timeout set to 8
0:188 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:188 0:000 KextsToPatch: 2 requested
0:188 0:000 KextsToPatch 0: AppleAHCIPort (External icons patch) Kext bin patch, data len: 8
0:188 0:000 KextsToPatch 1: AirPortAtheros40 (Atheros Locale Fix) Kext bin patch, data len: 3
0:188 0:000 Default theme: Metro
0:188 0:000 Hiding entries with string BOOTX64.EFI
0:188 0:000 Hiding entries with string Windows
0:188 0:000 LoadDrivers() start
0:195 0:006 Loading CsmVideoDxe-64.efi status=Success
0:196 0:000 - driver needs connecting
0:196 0:000 Loading DataHubDxe-64.efi status=Success
0:212 0:016 Loading FSInject-64.efi status=Success
0:219 0:006 Loading OsxAptioFixDrv-64.efi status=Success
0:228 0:009 Loading OsxFatBinaryDrv-64.efi status=Success
0:229 0:000 Loading VBoxHfs-64.efi status=Success
0:230 0:000 - driver needs connecting
0:230 0:000 2 drivers needs connecting ...
0:230 0:000 PlatformDriverOverrideProtocol not found. Installing ... Success
0:230 0:000 Video driver loaded: disconnect Success
0:314 0:083 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
0:326 0:012 CsmVideoDriverBindingStart
0:326 0:000 mixed support=40010
0:326 0:000 Controller is [030000]
0:326 0:000 Check for VBE
0:393 0:066 found Detail Timing 1920x1080
0:404 0:010 0 640x480 attr=3BF - ok, edid+, 640x480, working, highest, pref=0
0:406 0:001 1 800x600 attr=3BF - ok, edid+, 800x600, working, highest, pref=1
0:407 0:001 2 1024x768 attr=3BF - ok, edid+, 1024x768, working, highest, pref=2
0:409 0:001 3 1280x1024 attr=3BF - ok, edid+, working, highest, pref=3
0:420 0:010 4 1920x1080 attr=3BF - ok, edid+, working, highest, pref=4
0:422 0:001 5 1280x800 attr=3BF - ok, edid+, working
0:422 0:000 CsmVideo: New mode: 4 1920x1080 - set
1:247 0:825 - SetMode pref 4 (4) = Success
1:247 0:000 CsmVideoCheckForVbe - Success
1:247 0:000 CsmVideoDriverBindingStart end Success
1:247 0:000 CsmVideo: New mode: 2 1024x768 - blocking that switch
1:248 0:000 CsmVideo: New mode: 1 800x600 - blocking that switch
1:248 0:000 CsmVideo: New mode: 1 800x600 - blocking that switch
1:935 0:687 LoadDrivers() end
1:935 0:000 Dump SMC keys from NVRAM:
1:944 0:008 Console modes reported: 3, available modes:
1:944 0:000 Mode 1: 80x25
1:944 0:000 Mode 2: 80x50
1:944 0:000 Mode 3: 100x31 (current mode)
1:944 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,57B94C6A-55FE-4414-8A1B-897C7DF325A6,0x28,0x64000)
1:945 0:000 MAC address of LAN #0= xxxxxxxx
1:945 0:000 ScanSPD() start
1:945 0:000 SMBus CmdReg: 0x3
1:945 0:000 Scanning SMBus [8086:1C22], mmio: 0xF7204004, ioport: 0xF000, hostc: 0x1
1:945 0:000 Slots to scan [8]...
1:959 0:014 SPD[0]: Type 11 @0x50
1:968 0:008 DDR speed 1333MHz
1:968 0:000 Slot: 0 Type 24 2048MB 1333MHz Vendor=Crucial Technology PartNoxxxxxx SerialNo=xxxxxx
1:988 0:020 SPD[2]: Type 11 @0x52
1:997 0:008 DDR speed 1333MHz
1:997 0:000 Slot: 2 Type 24 2048MB 1333MHz Vendor=Crucial Technology PartNo=xxxxxxxxxxx SerialNo=xxxxxx
2:027 0:030 ScanSPD() end
2:027 0:000 Get Acpi Tables List from RSDT:
2:027 0:000 Found table: FACP A M I len=132
2:027 0:000 Found table: APIC A M I len=98
2:027 0:000 Found table: FPDT A M I len=68
2:027 0:000 Found table: MCFG A M I len=60
2:027 0:000 Found table: SSDT AoacTabl len=1994
2:027 0:000 Found table: HPET A M I len=56
2:027 0:000 Found table: SSDT SataTabl len=877
2:027 0:000 Found table: SSDT Cpu0Ist len=2408
2:027 0:000 Found table: SSDT CpuPm len=2706
2:027 0:000 Calibrated TSC frequency =2993207459 =2993MHz
2:027 0:000 Loading main settings
2:027 0:000 USB FixOwnership: true
2:027 0:000 Dropping 3 tables
2:027 0:000 Drop table 0 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
2:027 0:000 set table: 54445353, 6D50757043 to drop: true
2:027 0:000
2:027 0:000 Drop table 1 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
2:027 0:000 set table: 54445353, 74734930757043 to drop: true
2:027 0:000
2:027 0:000 Drop table 2 signature="DMAR" (52414D44)
2:027 0:000 set table: 52414D44, 0 to drop:
2:027 0:000 Config set Fixes will override FixMask mask!
2:027 0:000 final mask=9FCAE955
2:027 0:000 Config set EnableC6: +
2:027 0:000 Config set ChassisType=0x8
2:028 0:000 found 15 volumes with blockIO
2:028 0:000 0. Volume:
2:028 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x3,0x0)
2:028 0:000 USB volume
2:028 0:000 USB volume
2:028 0:000 1. Volume:
2:028 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\Scsi(0x0,0x1)
2:028 0:000 USB volume
2:028 0:000 USB volume
2:028 0:000 2. Volume:
2:028 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\Scsi(0x0,0x2)
2:028 0:000 USB volume
2:028 0:000 USB volume
2:028 0:000 3. Volume:
2:028 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\Scsi(0x0,0x3)
2:028 0:000 USB volume
2:028 0:000 USB volume
2:028 0:000 4. Volume:
2:028 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
2:028 0:000 Result of bootcode detection: bootable unknown (legacy)
2:028 0:000 5. Volume:
2:028 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
2:057 0:028 6. Volume:
2:057 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)
2:058 0:000 Result of bootcode detection: bootable unknown (legacy)
2:058 0:000 7. Volume:
2:058 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)
2:058 0:000 found optical drive
2:058 0:000 8. Volume:
2:058 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,MBR,0x90D5D68F,0x3F,0x3A384C02)
2:059 0:000 Result of bootcode detection: bootable unknown (legacy)
2:066 0:007 9. Volume:
2:066 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,57B94C6A-55FE-4414-8A1B-897C7DF325A6,0x28,0x64000)
2:067 0:000 Result of bootcode detection: bootable unknown (legacy)
2:087 0:020 This is SelfVolume !!
2:087 0:000 10. Volume:
2:087 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,4F222092-45F1-4720-8554-5CE3B9E38E8F,0x64028,0x251391B8)
2:088 0:000 11. Volume:
2:088 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,4590CADC-519D-4C06-B149-2AB74FB12273,0x2519D1E0,0x135F20)
2:121 0:032 12. Volume:
2:121 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(4,GPT,91EB9AEE-13E5-41C3-8309-39FD3A129E48,0x252D3100,0x15B988)
2:122 0:000 13. Volume:
2:122 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(1,MBR,0x5759645A,0x800,0x32000)
2:122 0:000 Result of bootcode detection: bootable Windows (vista,win)
2:143 0:020 14. Volume:
2:143 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(2,MBR,0x5759645A,0x32800,0x1D192800)
2:143 0:000 Result of bootcode detection: bootable Windows (vista,win)
2:179 0:036 Using theme 'Metro' (EFI\CLOVER\themes\Metro)
2:179 0:000 theme Metro defined in NVRAM found and theme.plist parsed
2:179 0:000 OS main and drive as badge
2:196 0:016 Choosing theme Metro
2:196 0:000 Custom entries start
2:196 0:000 Custom entries finish
2:196 0:000 Scanning loaders...
2:196 0:000 0: 'Whole Disc Boot' no file system
2:196 0:000 1: 'Whole Disc Boot' no file system
2:196 0:000 2: 'Whole Disc Boot' no file system
2:196 0:000 3: 'Whole Disc Boot' no file system
2:196 0:000 4: 'Whole Disc Boot' no file system
2:196 0:000 5: 'Whole Disc Boot' no file system
2:196 0:000 6: 'Whole Disc Boot' no file system
2:196 0:000 7: 'Whole Disc Boot' no file system
2:196 0:000 8: 'Backup 500 GO'
2:221 0:024 9: 'EFI'
2:229 0:008 10: 'El Capitan'
2:277 0:047 AddLoaderEntry for Volume Name=El Capitan
2:300 0:023 Check if volume Is Hibernated:
2:300 0:000 Check sleep image 'by signature':
2:355 0:054 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
2:355 0:000 SleepImage name from pref: ImageVolume = 'El Capitan', ImageName = '\private\var\vm\sleepimage'
2:389 0:033 Reading first 512 bytes of sleepimage ...
2:398 0:009 OurBlockIoRead: Lba=2468168, Offset=48D02D000 (BlockSize=512)
2:398 0:000 sig lion: 73696D65
2:398 0:000 sig snow: 0
2:398 0:000 got sleep image offset
2:398 0:000 Reading completed -> Success
2:398 0:000 sleepimage offset acquired successfully: 48D02D000
2:398 0:000 gSleepTime: 1450858439
2:411 0:012 HFS+ volume modifyDate: 1459087661
2:411 0:000 image older then volume: 8229222 sec
2:411 0:000 image too old
2:411 0:000 hibernated: no - time
2:452 0:041 11: 'Recovery HD'
2:492 0:039 AddLoaderEntry for Volume Name=Recovery HD
2:511 0:018 12: 'Sans titre'
2:525 0:014 13: 'RÈservÈ au systËme'
2:534 0:008 14: ''
2:542 0:008 Custom legacy start
2:542 0:000 Custom legacy end
2:542 0:000 Scanning legacy ...
2:542 0:000 0: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 1: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 2: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 3: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 4: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 5: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 6: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 7: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 8: 'Backup 500 GO' (legacy) not legacy
2:542 0:000 9: 'EFI' (legacy) not legacy
2:542 0:000 10: 'El Capitan' (legacy) not legacy
2:542 0:000 11: 'Recovery HD' (legacy) not legacy
2:542 0:000 12: 'Sans titre' (legacy) not legacy
2:542 0:000 13: 'RÈservÈ au systËme' (vista,win) add legacy
2:575 0:033 added 'Boot Windows from RÈservÈ au systËme' OSType=2 Icon=vista,win
2:575 0:000 14: '' (vista,win) add legacy
2:576 0:000 added 'Boot Windows from ' OSType=2 Icon=vista,win
2:576 0:000 Custom tool start
2:576 0:000 Custom tool end
2:586 0:010 found tool \EFI\CLOVER\tools\Shell64U.efi
2:586 0:000 Checking EFI partition Volume 9 for Clover
2:587 0:000 Found Clover
2:599 0:012 GetEfiBootDeviceFromNvram: efi-boot-device-data not found
2:599 0:000 EfiBootVolume not found
2:599 0:000 Default boot entry not found
2:599 0:000 DefaultIndex=-1 and MainMenu.EntryCount=10
2:964 0:365 Found Mouse device:
2:965 0:000 GUI ready
203:976 201:010 BootOption of the entry is empty
203:976 0:000 StartLoader() start
203:976 0:000 Entry->Settings: <null string>
203:976 0:000 Finally: Bus=99773kHz CPU=2993MHz
203:976 0:000 Kernel and Kext Patches at D083A270:
203:976 0:000 Allowed: y
203:976 0:000 Debug: n
203:976 0:000 KernelCpu: n
203:976 0:000 Lapic: n
203:976 0:000 Haswell-E: n
203:976 0:000 AICPUPM: y
203:976 0:000 AppleRTC: y
203:976 0:000 KernelPm: y
203:976 0:000 FakeCPUID: 0x0
203:976 0:000 ATIController: null
203:976 0:000 ATIDataLength: 0
203:976 0:000 0 Kexts to load
203:976 0:000 2 Kexts to patch
203:976 0:000 KextPatch[0]: 8 bytes, AppleAHCIPort
203:976 0:000 KextPatch[1]: 3 bytes, AirPortAtheros40
203:976 0:000 Loading boot.efi status=Success
204:200 0:223 GetOSVersion: : 10.11.4
204:200 0:000 insert table 9 for dev 0:0
204:200 0:000 insert table 9 for dev 0:1
204:200 0:000 insert table 9 for dev 0:0
204:200 0:000 insert table 9 for dev 0:0
204:201 0:000 Channels: 2
204:201 0:000 Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
204:201 0:000 SMBIOS Type 17 Index = 0 => 0 0:
204:201 0:000 BANK0 DIMM0 1333MHz 2048MB
204:201 0:000 mTotalSystemMemory = 2048
204:201 0:000 SMBIOS Type 17 Index = 1 => 2 2:
204:201 0:000 BANK1 DIMM0 1333MHz 2048MB
204:201 0:000 mTotalSystemMemory = 4096
204:201 0:000 NumberOfMemoryDevices = 2
204:201 0:000 Type20[0]->End = 0x1FFFFF, Type17[0] = 0x800
204:201 0:000 Type20[1]->End = 0x3FFFFF, Type17[1] = 0x1800
204:201 0:000 Table 131 is present, CPUType=31
204:201 0:000 Change to: 603
204:201 0:000 RSDT 0xDEBC4028
204:201 0:000 FADT from RSDT: 0xDEBC40F0
204:201 0:000 XSDT 0xDEBC4078
204:201 0:000 FADT from XSDT: 0xDEBCDD88
204:201 0:000 Xsdt reallocation done
204:201 0:000 old FADT length=10C
204:201 0:000 Found OperationRegion(GNVS, SystemMemory, DEBD0E18, ...)
204:201 0:000 Found OperationRegion(MCHT, SystemMemory, FED10000, ...)
204:201 0:000 Found OperationRegion(RCRB, SystemMemory, FED1C000, ...)
204:201 0:000 Found OperationRegion(CPSB, SystemMemory, DEABEE18, ...)
204:201 0:000 Found OperationRegion(TMMB, SystemMemory, FED40000, ...)
204:201 0:000 Found OperationRegion(TVID, SystemMemory, FED40F00, ...)
204:201 0:000 Found OperationRegion(TPMR, SystemMemory, FED40000, ...)
204:220 0:018 Apply DsdtFixMask=0x9FCAE955 new way
204:220 0:000 drop _DSM mask=0x0000
204:220 0:000 ========= Auto patch DSDT Starting ========
204:220 0:000 VideoCard devID=0x104A10DE
204:220 0:000 DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0
204:220 0:000 USBADR[0] = 0x1A0000 and PCIe = 0xFFFE
204:346 0:126 Found Airport Atheros at 0x1C0000, 0x0, DeviceID=0x0030
204:346 0:000 USBADR[1] = 0x1D0000 and PCIe = 0xFFFE
204:347 0:000 first CPU found at 70A6 offset 70A9
204:347 0:000 score candidate at 70A2
204:347 0:000 score inserted in acpi_cpu_score _PR_
204:347 0:000 Found ACPI CPU: CPU0 And CPU1 And CPU2 And CPU3 And CPU4 And CPU5 And CPU6 And CPU7
within the score: _PR_
204:347 0:000 Found PCIROOTUID = 0
204:347 0:000 Start RTC Fix
204:347 0:000 found RTC Length not match, Maybe will case CMOS reset will patch it.
204:347 0:000 found RTC had IRQNoFlag will move -3 bytes
204:347 0:000 ...len=9C4A
204:347 0:000 new size written to 2349 shift=0 len=9C4A
204:347 0:000 len after correct outers 9C4A
204:347 0:000 Start PIC Fix
204:347 0:000 PIC size=A5 at 21ED
204:347 0:000 found CRS at 2201 size 8D
204:347 0:000 found PIC had IRQNoFlag will move -3 bytes
204:347 0:000 Fix Device PIC size -3
204:347 0:000 Start HPET Fix
204:347 0:000 Start Display0 Fix
204:347 0:000 Found internal video device FFFF@3B59, unusable
204:347 0:000 Creating DSM for NVIDIA card
204:348 0:000 patch Display #0 of Vendor=0x10DE in DSDT new way
204:348 0:000 Start NetWork Fix
204:348 0:000 found NetWork device [0x001C0004:0] at 37D6 and Name is PXSX
204:348 0:000 NetworkADR1=1C0004 NetworkADR2=0
204:348 0:000 network DSM created, size=7C
204:348 0:000 Start Airport Fix
204:348 0:000 found Airport device [001C0000:0] at 33DA And Name is PXSX
204:348 0:000 Name PXSX present at 0xA2, renaming to ARPT
204:348 0:000 Name PXSX present at 0xE0, renaming to ARPT
204:348 0:000 AirportADR=33DA add patch size=F1
204:348 0:000 adr 33DA size of arpt=17
204:348 0:000 patch HDEF in DSDT
204:348 0:000 Start HDA Fix
204:349 0:000 found HDA device NAME(_ADR,0x001B0000) And Name is HDEF
204:349 0:000 NewName HDEF already present, renaming impossibble
204:349 0:000 Start Add IMEI
204:349 0:000 Start HDMI128 Fix
204:349 0:000 have no HDMI device while HDMIADR2=1
204:349 0:000 HDMIADR1=10000 HDMIADR2=1
204:349 0:000 with default properties
204:349 0:000 deleting device CRT_
204:350 0:000 deleting device DVI_
204:350 0:000 deleting device SPKR
204:350 0:000 deleting device ECP_
204:350 0:000 deleting device LPT_
204:350 0:000 deleting device FDC0
204:351 0:000 deleting device ECP1
204:351 0:000 deleting device LPT1
204:351 0:000 Start PNLF Fix
204:351 0:000 found PWRB at 3EDB
204:352 0:000 Start _S3D Fix
204:352 0:000 OperationRegion (GNVS...) corrected to addr=0xDEBD0E18
204:352 0:000 OperationRegion (MCHT...) corrected to addr=0xFED10000
204:352 0:000 indirect name=SRCB
204:352 0:000 OperationRegion (RCRB...) corrected to addr=0xFED1C000
204:352 0:000 OperationRegion (CPSB...) corrected to addr=0xDEABEE18
204:352 0:000 indirect name=ASLB
204:352 0:000 ... value not defined
204:352 0:000 OperationRegion (IGDM...) corrected to addr=0x0
204:352 0:000 OperationRegion (TMMB...) corrected to addr=0xFED40000
204:352 0:000 OperationRegion (TVID...) corrected to addr=0xFED40F00
204:352 0:000 OperationRegion (TPMR...) corrected to addr=0xFED40000
204:352 0:000 Start ADP1 fix
204:352 0:000 no device(AC) exists
204:352 0:000 Start SHUTDOWN Fix len=9E3E
204:352 0:000 ========= Auto patch DSDT Finished ========
204:352 0:000 Drop tables from Xsdt, SIGN=SSDT TableID=CpuPm Length=2706
204:352 0:000 Xsdt has tables count=9
204:352 0:000 Table: SSDT CpuPm 2706 dropped
204:352 0:000 corrected XSDT length=100
204:352 0:000 Drop tables from Xsdt, SIGN=SSDT TableID=Cpu0Ist Length=2408
204:352 0:000 Xsdt has tables count=8
204:352 0:000 Table: SSDT Cpu0Ist 2408 dropped
204:352 0:000 corrected XSDT length=92
204:352 0:000 Patch table: SSDT AoacTabl
204:352 0:000 SSDT len = 0x7CA
204:352 0:000 Patch table: SSDT SataTabl
204:352 0:000 SSDT len = 0x36D
204:352 0:000 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
204:352 0:000 Xsdt has tables count=7
204:352 0:000 corrected XSDT length=92
204:352 0:000 CPUBase=0 and ApicCPUBase=1 ApicCPUNum=2
204:352 0:000 Maximum control=0x1E
204:352 0:000 P-States: min 0x10, max 0x1E
204:352 0:000 SSDT with CPU P-States generated successfully
204:352 0:000 SSDT with CPU C-States generated successfully
204:352 0:000 EdidDiscovered size=128
204:352 0:000 00 | 00 FF FF FF FF FF FF 00 4C 2D DE 04 33 32 4D 43
204:352 0:000 16 | 0D 13 01 03 80 33 1D 78 2A EE 91 A3 54 4C 99 26
204:352 0:000 32 | 0F 50 54 23 08 00 81 00 81 40 81 80 95 00 B3 00
204:352 0:000 48 | A9 40 01 01 01 01 1A 36 80 A0 70 38 1F 40 30 20
204:352 0:000 64 | 35 00 DD 0C 11 00 00 1A 00 00 00 FD 00 38 3D 1E
204:352 0:000 80 | 4B 11 00 0A 20 20 20 20 20 20 00 00 00 FC 00 53
204:352 0:000 96 | 79 6E 63 4D 61 73 74 65 72 0A 20 20 00 00 00 FF
204:352 0:000 112 | 00 48 39 58 53 33 31 39 37 38 31 0A 20 20 00 82
204:352 0:000 NVidia GFX injection not set
204:352 0:000 USB Controller [8086:1C2D] :: PciRoot(0x0)\Pci(0x1A,0x0)
204:352 0:000 USB Controller [8086:1C26] :: PciRoot(0x0)\Pci(0x1D,0x0)
204:352 0:000 RCBA access disabled; trying to enable
204:352 0:000 stringlength = 1176
204:352 0:000 CurrentMode: Width=1920 Height=1080
204:352 0:000 Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D3DB1E18
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D3DB1E18
204:358 0:006 MSR 0x1B0 set to 00000000
204:358 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
204:369 0:010 Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
204:374 0:005 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.11
204:375 0:001 Extra kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext
204:381 0:006 Removed efi-boot-device-data variable: Not Found
204:381 0:000 Custom boot is disabled
204:381 0:000 Closing log
ScreenZ- Super usr
- Date d'inscription : 06/01/2013
Localisation : Metz
Re: Carte Wifi PCI express TL-WDN4800 reconu en native
par chris1111 Dim 27 Mar - 10:16
ScreenZ a écrit:
- Code:
0:100 0:100 MemLog inited, TSC freq: 2993207459
0:100 0:000
0:100 0:000 Now is 27.3.2016, 14:7:59 (GMT+2047)
0:100 0:000 Starting Clover rev 3330 on American Megatrends EFI
0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,57B94C6A-55FE-4414-8A1B-897C7DF325A6,0x28,0x64000) @D3DEC118
0:100 0:000 SelfDirPath = \EFI\BOOT
0:100 0:000 Total Memory Slots Count = 4
0:100 0:000 Type 17 Index = 0
0:100 0:000 SmbiosTable.Type17->Speed = 1333MHz
0:100 0:000 SmbiosTable.Type17->Size = 2048MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100 0:000 Type 17 Index = 1
0:100 0:000 Ignoring insane frequency value 0MHz
0:100 0:000 SmbiosTable.Type17->Speed = 0MHz
0:100 0:000 SmbiosTable.Type17->Size = 0MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100 0:000 Type 17 Index = 2
0:100 0:000 SmbiosTable.Type17->Speed = 1333MHz
0:100 0:000 SmbiosTable.Type17->Size = 2048MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100 0:000 Type 17 Index = 3
0:100 0:000 Ignoring insane frequency value 0MHz
0:100 0:000 SmbiosTable.Type17->Speed = 0MHz
0:100 0:000 SmbiosTable.Type17->Size = 0MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100 0:000 Boot status=0
0:100 0:000 Clover revision: 3330 running on MS-7788
0:100 0:000 ... with board H61M-P20 (G3) (MS-7788)
0:100 0:000 CPU Vendor = 756E6547 Model=206A7
0:100 0:000 The CPU not supported turbo
0:100 0:000 BrandString = Intel(R) Pentium(R) CPU G860 @ 3.00GHz
0:100 0:000 MSR 0xE2 before patch 1E008401
0:100 0:000 MSR 0xE2 is locked, PM patches will be turned on
0:100 0:000 MSR 0xE4 00010414
0:100 0:000 MSR 0xCE 00001000_60011E00
0:100 0:000 non-usable FLEX_RATIO = 10000
0:100 0:000 corrected FLEX_RATIO = 0
0:100 0:000 MSR 0x1B0 00000000
0:100 0:000 FSBFrequency=100MHz DMIvalue=100000kHz
0:100 0:000 Corrected FSBFrequency=100MHz
0:100 0:000 Vendor/Model/Stepping: 0x756E6547/0x2A/0x7
0:100 0:000 Family/ExtFamily: 0x6/0x0
0:100 0:000 MaxDiv/MinDiv: 30.0/16
0:100 0:000 Turbo: 30/30/30/30
0:100 0:000 Features: 0xBFEBFBFF
0:100 0:000 Threads: 2
0:100 0:000 Cores: 2
0:100 0:000 FSB: 100 MHz
0:100 0:000 CPU: 3000 MHz
0:100 0:000 TSC: 3000 MHz
0:100 0:000 PIS: 400 MHz
0:100 0:000 PCI (00|00:00.00) : 8086 0100 class=060000
0:100 0:000 PCI (00|00:01.00) : 8086 0101 class=060400
0:100 0:000 PCI (00|01:00.00) : 10DE 104A class=030000
0:100 0:000 Found NVidia model=Gigabyte GeForce GT 610
0:100 0:000 PCI (00|01:00.01) : 10DE 0E08 class=040300
0:100 0:000 PCI (00|00:16.00) : 8086 1C3A class=078000
0:100 0:000 PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100 0:000 PCI (00|00:1A.00) : 8086 1C2D class=0C0320
0:100 0:000 PCI (00|00:1B.00) : 8086 1C20 class=040300
0:100 0:000 PCI (00|00:1C.00) : 8086 1C10 class=060400
0:100 0:000 PCI (00|02:00.00) : 168C 0030 class=028000
0:100 0:000 PCI (00|00:1C.04) : 8086 1C18 class=060400
0:100 0:000 PCI (00|03:00.00) : 10EC 8136 class=020000
0:100 0:000 LAN 0, Vendor=10EC, MMIO=D000
0:100 0:000 PCI (00|00:1D.00) : 8086 1C26 class=0C0320
0:100 0:000 PCI (00|00:1F.00) : 8086 1C5C class=060100
0:100 0:000 PCI (00|00:1F.02) : 8086 1C02 class=010601
0:100 0:000 PCI (00|00:1F.03) : 8086 1C22 class=0C0500
0:100 0:000 Clover load options size = 0 bytes
0:147 0:047 Using OEM config.plist at path: EFI\CLOVER\config.plist
0:148 0:000 EFI\CLOVER\config.plist loaded: Success
0:162 0:014 Found theme directory: Space
0:169 0:007 Found theme directory: Metro
0:179 0:010 Found theme directory: EMBEDDED
0:184 0:004 Found theme directory: NEWYEAR
0:187 0:002 Found theme directory: RANDOM
0:188 0:001 Loading early settings
0:188 0:000 timeout set to 8
0:188 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:188 0:000 KextsToPatch: 2 requested
0:188 0:000 KextsToPatch 0: AppleAHCIPort (External icons patch) Kext bin patch, data len: 8
0:188 0:000 KextsToPatch 1: AirPortAtheros40 (Atheros Locale Fix) Kext bin patch, data len: 3
0:188 0:000 Default theme: Metro
0:188 0:000 Hiding entries with string BOOTX64.EFI
0:188 0:000 Hiding entries with string Windows
0:188 0:000 LoadDrivers() start
0:195 0:006 Loading CsmVideoDxe-64.efi status=Success
0:196 0:000 - driver needs connecting
0:196 0:000 Loading DataHubDxe-64.efi status=Success
0:212 0:016 Loading FSInject-64.efi status=Success
0:219 0:006 Loading OsxAptioFixDrv-64.efi status=Success
0:228 0:009 Loading OsxFatBinaryDrv-64.efi status=Success
0:229 0:000 Loading VBoxHfs-64.efi status=Success
0:230 0:000 - driver needs connecting
0:230 0:000 2 drivers needs connecting ...
0:230 0:000 PlatformDriverOverrideProtocol not found. Installing ... Success
0:230 0:000 Video driver loaded: disconnect Success
0:314 0:083 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
0:326 0:012 CsmVideoDriverBindingStart
0:326 0:000 mixed support=40010
0:326 0:000 Controller is [030000]
0:326 0:000 Check for VBE
0:393 0:066 found Detail Timing 1920x1080
0:404 0:010 0 640x480 attr=3BF - ok, edid+, 640x480, working, highest, pref=0
0:406 0:001 1 800x600 attr=3BF - ok, edid+, 800x600, working, highest, pref=1
0:407 0:001 2 1024x768 attr=3BF - ok, edid+, 1024x768, working, highest, pref=2
0:409 0:001 3 1280x1024 attr=3BF - ok, edid+, working, highest, pref=3
0:420 0:010 4 1920x1080 attr=3BF - ok, edid+, working, highest, pref=4
0:422 0:001 5 1280x800 attr=3BF - ok, edid+, working
0:422 0:000 CsmVideo: New mode: 4 1920x1080 - set
1:247 0:825 - SetMode pref 4 (4) = Success
1:247 0:000 CsmVideoCheckForVbe - Success
1:247 0:000 CsmVideoDriverBindingStart end Success
1:247 0:000 CsmVideo: New mode: 2 1024x768 - blocking that switch
1:248 0:000 CsmVideo: New mode: 1 800x600 - blocking that switch
1:248 0:000 CsmVideo: New mode: 1 800x600 - blocking that switch
1:935 0:687 LoadDrivers() end
1:935 0:000 Dump SMC keys from NVRAM:
1:944 0:008 Console modes reported: 3, available modes:
1:944 0:000 Mode 1: 80x25
1:944 0:000 Mode 2: 80x50
1:944 0:000 Mode 3: 100x31 (current mode)
1:944 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,57B94C6A-55FE-4414-8A1B-897C7DF325A6,0x28,0x64000)
1:945 0:000 MAC address of LAN #0= D4:3D:7E:03:D9:98:
1:945 0:000 ScanSPD() start
1:945 0:000 SMBus CmdReg: 0x3
1:945 0:000 Scanning SMBus [8086:1C22], mmio: 0xF7204004, ioport: 0xF000, hostc: 0x1
1:945 0:000 Slots to scan [8]...
1:959 0:014 SPD[0]: Type 11 @0x50
1:968 0:008 DDR speed 1333MHz
1:968 0:000 Slot: 0 Type 24 2048MB 1333MHz Vendor=Crucial Technology PartNo=ST25664BA1339.8FMD SerialNo=0A06000802070E03
1:988 0:020 SPD[2]: Type 11 @0x52
1:997 0:008 DDR speed 1333MHz
1:997 0:000 Slot: 2 Type 24 2048MB 1333MHz Vendor=Crucial Technology PartNo=ST25664BA1339.8FMD SerialNo=0A06000802070E0B
2:027 0:030 ScanSPD() end
2:027 0:000 Get Acpi Tables List from RSDT:
2:027 0:000 Found table: FACP A M I len=132
2:027 0:000 Found table: APIC A M I len=98
2:027 0:000 Found table: FPDT A M I len=68
2:027 0:000 Found table: MCFG A M I len=60
2:027 0:000 Found table: SSDT AoacTabl len=1994
2:027 0:000 Found table: HPET A M I len=56
2:027 0:000 Found table: SSDT SataTabl len=877
2:027 0:000 Found table: SSDT Cpu0Ist len=2408
2:027 0:000 Found table: SSDT CpuPm len=2706
2:027 0:000 Calibrated TSC frequency =2993207459 =2993MHz
2:027 0:000 Loading main settings
2:027 0:000 USB FixOwnership: true
2:027 0:000 Dropping 3 tables
2:027 0:000 Drop table 0 signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
2:027 0:000 set table: 54445353, 6D50757043 to drop: true
2:027 0:000
2:027 0:000 Drop table 1 signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
2:027 0:000 set table: 54445353, 74734930757043 to drop: true
2:027 0:000
2:027 0:000 Drop table 2 signature="DMAR" (52414D44)
2:027 0:000 set table: 52414D44, 0 to drop:
2:027 0:000 Config set Fixes will override FixMask mask!
2:027 0:000 final mask=9FCAE955
2:027 0:000 Config set EnableC6: +
2:027 0:000 Config set ChassisType=0x8
2:028 0:000 found 15 volumes with blockIO
2:028 0:000 0. Volume:
2:028 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x3,0x0)
2:028 0:000 USB volume
2:028 0:000 USB volume
2:028 0:000 1. Volume:
2:028 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\Scsi(0x0,0x1)
2:028 0:000 USB volume
2:028 0:000 USB volume
2:028 0:000 2. Volume:
2:028 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\Scsi(0x0,0x2)
2:028 0:000 USB volume
2:028 0:000 USB volume
2:028 0:000 3. Volume:
2:028 0:000 PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x1,0x0)\USB(0x3,0x0)\Scsi(0x0,0x3)
2:028 0:000 USB volume
2:028 0:000 USB volume
2:028 0:000 4. Volume:
2:028 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)
2:028 0:000 Result of bootcode detection: bootable unknown (legacy)
2:028 0:000 5. Volume:
2:028 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
2:057 0:028 6. Volume:
2:057 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)
2:058 0:000 Result of bootcode detection: bootable unknown (legacy)
2:058 0:000 7. Volume:
2:058 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0xFFFF,0x0)
2:058 0:000 found optical drive
2:058 0:000 8. Volume:
2:058 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0xFFFF,0x0)\HD(1,MBR,0x90D5D68F,0x3F,0x3A384C02)
2:059 0:000 Result of bootcode detection: bootable unknown (legacy)
2:066 0:007 9. Volume:
2:066 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,57B94C6A-55FE-4414-8A1B-897C7DF325A6,0x28,0x64000)
2:067 0:000 Result of bootcode detection: bootable unknown (legacy)
2:087 0:020 This is SelfVolume !!
2:087 0:000 10. Volume:
2:087 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,4F222092-45F1-4720-8554-5CE3B9E38E8F,0x64028,0x251391B8)
2:088 0:000 11. Volume:
2:088 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(3,GPT,4590CADC-519D-4C06-B149-2AB74FB12273,0x2519D1E0,0x135F20)
2:121 0:032 12. Volume:
2:121 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(4,GPT,91EB9AEE-13E5-41C3-8309-39FD3A129E48,0x252D3100,0x15B988)
2:122 0:000 13. Volume:
2:122 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(1,MBR,0x5759645A,0x800,0x32000)
2:122 0:000 Result of bootcode detection: bootable Windows (vista,win)
2:143 0:020 14. Volume:
2:143 0:000 PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(2,MBR,0x5759645A,0x32800,0x1D192800)
2:143 0:000 Result of bootcode detection: bootable Windows (vista,win)
2:179 0:036 Using theme 'Metro' (EFI\CLOVER\themes\Metro)
2:179 0:000 theme Metro defined in NVRAM found and theme.plist parsed
2:179 0:000 OS main and drive as badge
2:196 0:016 Choosing theme Metro
2:196 0:000 Custom entries start
2:196 0:000 Custom entries finish
2:196 0:000 Scanning loaders...
2:196 0:000 0: 'Whole Disc Boot' no file system
2:196 0:000 1: 'Whole Disc Boot' no file system
2:196 0:000 2: 'Whole Disc Boot' no file system
2:196 0:000 3: 'Whole Disc Boot' no file system
2:196 0:000 4: 'Whole Disc Boot' no file system
2:196 0:000 5: 'Whole Disc Boot' no file system
2:196 0:000 6: 'Whole Disc Boot' no file system
2:196 0:000 7: 'Whole Disc Boot' no file system
2:196 0:000 8: 'Backup 500 GO'
2:221 0:024 9: 'EFI'
2:229 0:008 10: 'El Capitan'
2:277 0:047 AddLoaderEntry for Volume Name=El Capitan
2:300 0:023 Check if volume Is Hibernated:
2:300 0:000 Check sleep image 'by signature':
2:355 0:054 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
2:355 0:000 SleepImage name from pref: ImageVolume = 'El Capitan', ImageName = '\private\var\vm\sleepimage'
2:389 0:033 Reading first 512 bytes of sleepimage ...
2:398 0:009 OurBlockIoRead: Lba=2468168, Offset=48D02D000 (BlockSize=512)
2:398 0:000 sig lion: 73696D65
2:398 0:000 sig snow: 0
2:398 0:000 got sleep image offset
2:398 0:000 Reading completed -> Success
2:398 0:000 sleepimage offset acquired successfully: 48D02D000
2:398 0:000 gSleepTime: 1450858439
2:411 0:012 HFS+ volume modifyDate: 1459087661
2:411 0:000 image older then volume: 8229222 sec
2:411 0:000 image too old
2:411 0:000 hibernated: no - time
2:452 0:041 11: 'Recovery HD'
2:492 0:039 AddLoaderEntry for Volume Name=Recovery HD
2:511 0:018 12: 'Sans titre'
2:525 0:014 13: 'RÈservÈ au systËme'
2:534 0:008 14: ''
2:542 0:008 Custom legacy start
2:542 0:000 Custom legacy end
2:542 0:000 Scanning legacy ...
2:542 0:000 0: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 1: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 2: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 3: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 4: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 5: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 6: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 7: 'Whole Disc Boot' (legacy) not legacy
2:542 0:000 8: 'Backup 500 GO' (legacy) not legacy
2:542 0:000 9: 'EFI' (legacy) not legacy
2:542 0:000 10: 'El Capitan' (legacy) not legacy
2:542 0:000 11: 'Recovery HD' (legacy) not legacy
2:542 0:000 12: 'Sans titre' (legacy) not legacy
2:542 0:000 13: 'RÈservÈ au systËme' (vista,win) add legacy
2:575 0:033 added 'Boot Windows from RÈservÈ au systËme' OSType=2 Icon=vista,win
2:575 0:000 14: '' (vista,win) add legacy
2:576 0:000 added 'Boot Windows from ' OSType=2 Icon=vista,win
2:576 0:000 Custom tool start
2:576 0:000 Custom tool end
2:586 0:010 found tool \EFI\CLOVER\tools\Shell64U.efi
2:586 0:000 Checking EFI partition Volume 9 for Clover
2:587 0:000 Found Clover
2:599 0:012 GetEfiBootDeviceFromNvram: efi-boot-device-data not found
2:599 0:000 EfiBootVolume not found
2:599 0:000 Default boot entry not found
2:599 0:000 DefaultIndex=-1 and MainMenu.EntryCount=10
2:964 0:365 Found Mouse device:
2:965 0:000 GUI ready
203:976 201:010 BootOption of the entry is empty
203:976 0:000 StartLoader() start
203:976 0:000 Entry->Settings: <null string>
203:976 0:000 Finally: Bus=99773kHz CPU=2993MHz
203:976 0:000 Kernel and Kext Patches at D083A270:
203:976 0:000 Allowed: y
203:976 0:000 Debug: n
203:976 0:000 KernelCpu: n
203:976 0:000 Lapic: n
203:976 0:000 Haswell-E: n
203:976 0:000 AICPUPM: y
203:976 0:000 AppleRTC: y
203:976 0:000 KernelPm: y
203:976 0:000 FakeCPUID: 0x0
203:976 0:000 ATIController: null
203:976 0:000 ATIDataLength: 0
203:976 0:000 0 Kexts to load
203:976 0:000 2 Kexts to patch
203:976 0:000 KextPatch[0]: 8 bytes, AppleAHCIPort
203:976 0:000 KextPatch[1]: 3 bytes, AirPortAtheros40
203:976 0:000 Loading boot.efi status=Success
204:200 0:223 GetOSVersion: : 10.11.4
204:200 0:000 insert table 9 for dev 0:0
204:200 0:000 insert table 9 for dev 0:1
204:200 0:000 insert table 9 for dev 0:0
204:200 0:000 insert table 9 for dev 0:0
204:201 0:000 Channels: 2
204:201 0:000 Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
204:201 0:000 SMBIOS Type 17 Index = 0 => 0 0:
204:201 0:000 BANK0 DIMM0 1333MHz 2048MB
204:201 0:000 mTotalSystemMemory = 2048
204:201 0:000 SMBIOS Type 17 Index = 1 => 2 2:
204:201 0:000 BANK1 DIMM0 1333MHz 2048MB
204:201 0:000 mTotalSystemMemory = 4096
204:201 0:000 NumberOfMemoryDevices = 2
204:201 0:000 Type20[0]->End = 0x1FFFFF, Type17[0] = 0x800
204:201 0:000 Type20[1]->End = 0x3FFFFF, Type17[1] = 0x1800
204:201 0:000 Table 131 is present, CPUType=31
204:201 0:000 Change to: 603
204:201 0:000 RSDT 0xDEBC4028
204:201 0:000 FADT from RSDT: 0xDEBC40F0
204:201 0:000 XSDT 0xDEBC4078
204:201 0:000 FADT from XSDT: 0xDEBCDD88
204:201 0:000 Xsdt reallocation done
204:201 0:000 old FADT length=10C
204:201 0:000 Found OperationRegion(GNVS, SystemMemory, DEBD0E18, ...)
204:201 0:000 Found OperationRegion(MCHT, SystemMemory, FED10000, ...)
204:201 0:000 Found OperationRegion(RCRB, SystemMemory, FED1C000, ...)
204:201 0:000 Found OperationRegion(CPSB, SystemMemory, DEABEE18, ...)
204:201 0:000 Found OperationRegion(TMMB, SystemMemory, FED40000, ...)
204:201 0:000 Found OperationRegion(TVID, SystemMemory, FED40F00, ...)
204:201 0:000 Found OperationRegion(TPMR, SystemMemory, FED40000, ...)
204:220 0:018 Apply DsdtFixMask=0x9FCAE955 new way
204:220 0:000 drop _DSM mask=0x0000
204:220 0:000 ========= Auto patch DSDT Starting ========
204:220 0:000 VideoCard devID=0x104A10DE
204:220 0:000 DisplayADR1[0] = 0x10000, DisplayADR2[0] = 0x0
204:220 0:000 USBADR[0] = 0x1A0000 and PCIe = 0xFFFE
204:346 0:126 Found Airport Atheros at 0x1C0000, 0x0, DeviceID=0x0030
204:346 0:000 USBADR[1] = 0x1D0000 and PCIe = 0xFFFE
204:347 0:000 first CPU found at 70A6 offset 70A9
204:347 0:000 score candidate at 70A2
204:347 0:000 score inserted in acpi_cpu_score _PR_
204:347 0:000 Found ACPI CPU: CPU0 And CPU1 And CPU2 And CPU3 And CPU4 And CPU5 And CPU6 And CPU7
within the score: _PR_
204:347 0:000 Found PCIROOTUID = 0
204:347 0:000 Start RTC Fix
204:347 0:000 found RTC Length not match, Maybe will case CMOS reset will patch it.
204:347 0:000 found RTC had IRQNoFlag will move -3 bytes
204:347 0:000 ...len=9C4A
204:347 0:000 new size written to 2349 shift=0 len=9C4A
204:347 0:000 len after correct outers 9C4A
204:347 0:000 Start PIC Fix
204:347 0:000 PIC size=A5 at 21ED
204:347 0:000 found CRS at 2201 size 8D
204:347 0:000 found PIC had IRQNoFlag will move -3 bytes
204:347 0:000 Fix Device PIC size -3
204:347 0:000 Start HPET Fix
204:347 0:000 Start Display0 Fix
204:347 0:000 Found internal video device FFFF@3B59, unusable
204:347 0:000 Creating DSM for NVIDIA card
204:348 0:000 patch Display #0 of Vendor=0x10DE in DSDT new way
204:348 0:000 Start NetWork Fix
204:348 0:000 found NetWork device [0x001C0004:0] at 37D6 and Name is PXSX
204:348 0:000 NetworkADR1=1C0004 NetworkADR2=0
204:348 0:000 network DSM created, size=7C
204:348 0:000 Start Airport Fix
204:348 0:000 found Airport device [001C0000:0] at 33DA And Name is PXSX
204:348 0:000 Name PXSX present at 0xA2, renaming to ARPT
204:348 0:000 Name PXSX present at 0xE0, renaming to ARPT
204:348 0:000 AirportADR=33DA add patch size=F1
204:348 0:000 adr 33DA size of arpt=17
204:348 0:000 patch HDEF in DSDT
204:348 0:000 Start HDA Fix
204:349 0:000 found HDA device NAME(_ADR,0x001B0000) And Name is HDEF
204:349 0:000 NewName HDEF already present, renaming impossibble
204:349 0:000 Start Add IMEI
204:349 0:000 Start HDMI128 Fix
204:349 0:000 have no HDMI device while HDMIADR2=1
204:349 0:000 HDMIADR1=10000 HDMIADR2=1
204:349 0:000 with default properties
204:349 0:000 deleting device CRT_
204:350 0:000 deleting device DVI_
204:350 0:000 deleting device SPKR
204:350 0:000 deleting device ECP_
204:350 0:000 deleting device LPT_
204:350 0:000 deleting device FDC0
204:351 0:000 deleting device ECP1
204:351 0:000 deleting device LPT1
204:351 0:000 Start PNLF Fix
204:351 0:000 found PWRB at 3EDB
204:352 0:000 Start _S3D Fix
204:352 0:000 OperationRegion (GNVS...) corrected to addr=0xDEBD0E18
204:352 0:000 OperationRegion (MCHT...) corrected to addr=0xFED10000
204:352 0:000 indirect name=SRCB
204:352 0:000 OperationRegion (RCRB...) corrected to addr=0xFED1C000
204:352 0:000 OperationRegion (CPSB...) corrected to addr=0xDEABEE18
204:352 0:000 indirect name=ASLB
204:352 0:000 ... value not defined
204:352 0:000 OperationRegion (IGDM...) corrected to addr=0x0
204:352 0:000 OperationRegion (TMMB...) corrected to addr=0xFED40000
204:352 0:000 OperationRegion (TVID...) corrected to addr=0xFED40F00
204:352 0:000 OperationRegion (TPMR...) corrected to addr=0xFED40000
204:352 0:000 Start ADP1 fix
204:352 0:000 no device(AC) exists
204:352 0:000 Start SHUTDOWN Fix len=9E3E
204:352 0:000 ========= Auto patch DSDT Finished ========
204:352 0:000 Drop tables from Xsdt, SIGN=SSDT TableID=CpuPm Length=2706
204:352 0:000 Xsdt has tables count=9
204:352 0:000 Table: SSDT CpuPm 2706 dropped
204:352 0:000 corrected XSDT length=100
204:352 0:000 Drop tables from Xsdt, SIGN=SSDT TableID=Cpu0Ist Length=2408
204:352 0:000 Xsdt has tables count=8
204:352 0:000 Table: SSDT Cpu0Ist 2408 dropped
204:352 0:000 corrected XSDT length=92
204:352 0:000 Patch table: SSDT AoacTabl
204:352 0:000 SSDT len = 0x7CA
204:352 0:000 Patch table: SSDT SataTabl
204:352 0:000 SSDT len = 0x36D
204:352 0:000 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0
204:352 0:000 Xsdt has tables count=7
204:352 0:000 corrected XSDT length=92
204:352 0:000 CPUBase=0 and ApicCPUBase=1 ApicCPUNum=2
204:352 0:000 Maximum control=0x1E
204:352 0:000 P-States: min 0x10, max 0x1E
204:352 0:000 SSDT with CPU P-States generated successfully
204:352 0:000 SSDT with CPU C-States generated successfully
204:352 0:000 EdidDiscovered size=128
204:352 0:000 00 | 00 FF FF FF FF FF FF 00 4C 2D DE 04 33 32 4D 43
204:352 0:000 16 | 0D 13 01 03 80 33 1D 78 2A EE 91 A3 54 4C 99 26
204:352 0:000 32 | 0F 50 54 23 08 00 81 00 81 40 81 80 95 00 B3 00
204:352 0:000 48 | A9 40 01 01 01 01 1A 36 80 A0 70 38 1F 40 30 20
204:352 0:000 64 | 35 00 DD 0C 11 00 00 1A 00 00 00 FD 00 38 3D 1E
204:352 0:000 80 | 4B 11 00 0A 20 20 20 20 20 20 00 00 00 FC 00 53
204:352 0:000 96 | 79 6E 63 4D 61 73 74 65 72 0A 20 20 00 00 00 FF
204:352 0:000 112 | 00 48 39 58 53 33 31 39 37 38 31 0A 20 20 00 82
204:352 0:000 NVidia GFX injection not set
204:352 0:000 USB Controller [8086:1C2D] :: PciRoot(0x0)\Pci(0x1A,0x0)
204:352 0:000 USB Controller [8086:1C26] :: PciRoot(0x0)\Pci(0x1D,0x0)
204:352 0:000 RCBA access disabled; trying to enable
204:352 0:000 stringlength = 1176
204:352 0:000 CurrentMode: Width=1920 Height=1080
204:352 0:000 Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D3DB1E18
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D3DB1E18
204:358 0:006 MSR 0x1B0 set to 00000000
204:358 0:000 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
204:369 0:010 Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext
204:374 0:005 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.11
204:375 0:001 Extra kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext
204:381 0:006 Removed efi-boot-device-data variable: Not Found
204:381 0:000 Custom boot is disabled
204:381 0:000 Closing log
0:188 0:000 KextsToPatch 1: AirPortAtheros40 (Atheros Locale Fix) Kext bin patch, data len: 3
chris1111- Admin
- Date d'inscription : 18/12/2012
Localisation : Laval. Québec Canada -
Re: Carte Wifi PCI express TL-WDN4800 reconu en native
par ScreenZ Dim 27 Mar - 11:28
Ce qui veux dire que je ne devrais plus avoir le soucis ?
ScreenZ- Super usr
- Date d'inscription : 06/01/2013
Localisation : Metz
Re: Carte Wifi PCI express TL-WDN4800 reconu en native
par chris1111 Dim 27 Mar - 11:32
Il ny a rien de garantieScreenZ a écrit:Ce qui veux dire que je ne devrais plus avoir le soucis ?
Mais jusqu'à present pour moi sa marche très bien
chris1111- Admin
- Date d'inscription : 18/12/2012
Localisation : Laval. Québec Canada -
Re: Carte Wifi PCI express TL-WDN4800 reconu en native
par ScreenZ Dim 27 Mar - 11:42
Ok, je croise les doigt alors
ScreenZ- Super usr
- Date d'inscription : 06/01/2013
Localisation : Metz
Sujets similaires» Prob WIFI aver carte PCI TP-Link TL-WDN4800
» carte pci express wifi BCM94360CD
» Carte wifi pour Lenovo Yoga native Mac
» Quelle carte WiFi/Bluetooth 4.0 PCI-Express ?
» Carte TL-WDN4800
» carte pci express wifi BCM94360CD
» Carte wifi pour Lenovo Yoga native Mac
» Quelle carte WiFi/Bluetooth 4.0 PCI-Express ?
» Carte TL-WDN4800
Page 1 sur 1
Permission de ce forum:
Vous ne pouvez pas répondre aux sujets dans ce forum
